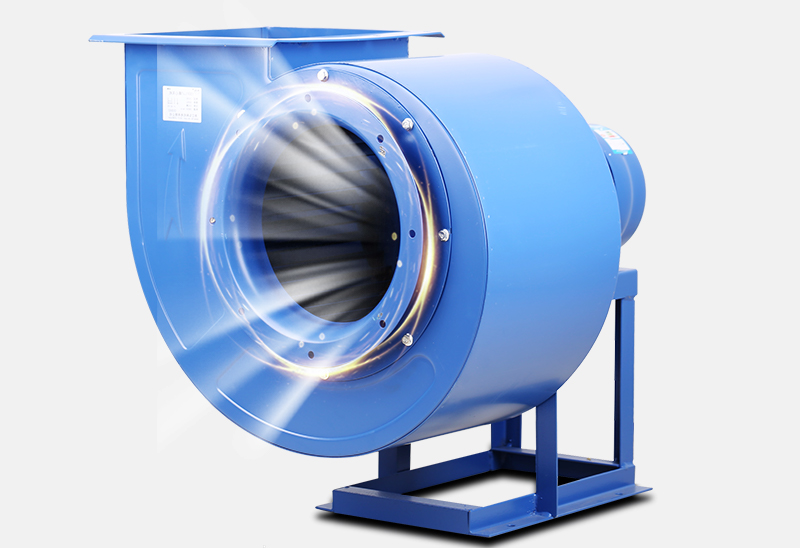

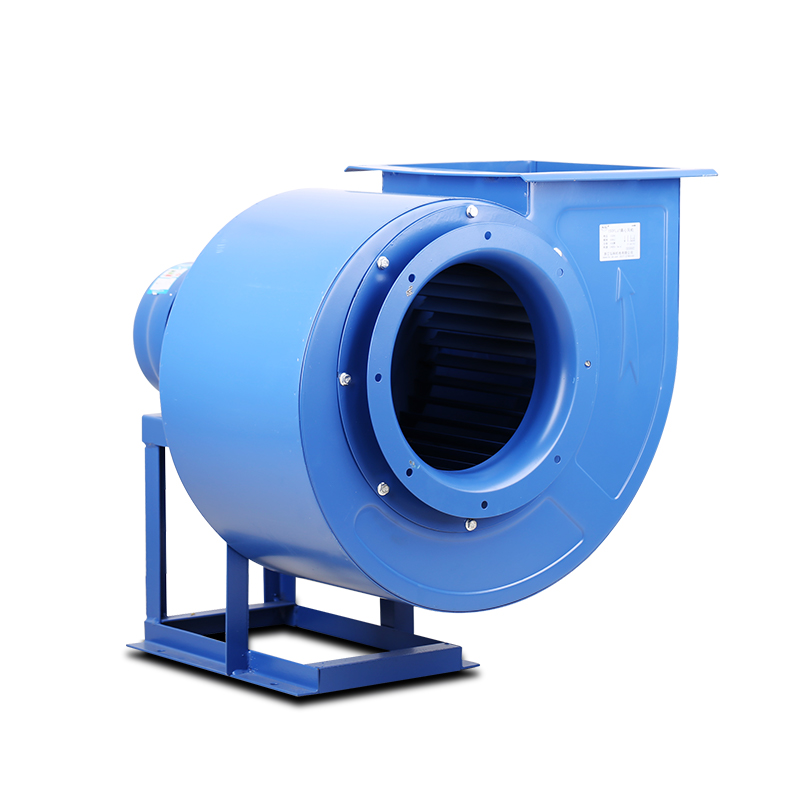

11-62多翼式離心風機

隔熱耐高溫? ?低噪音? 大風量

The traditional color still make people happy, and simple tonal collocation, bold stripes can transform bring new look, let you bec

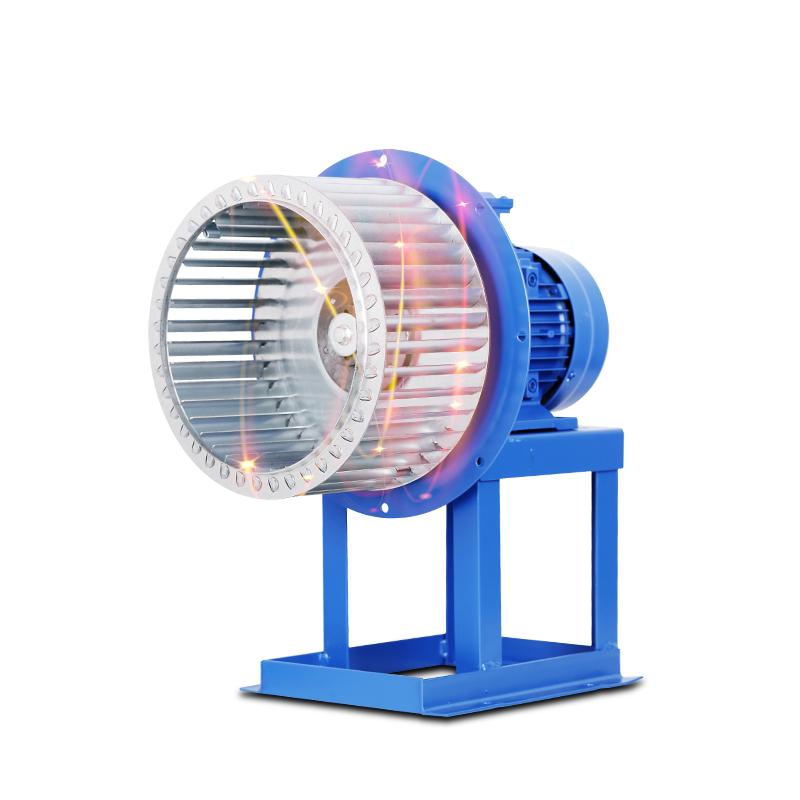

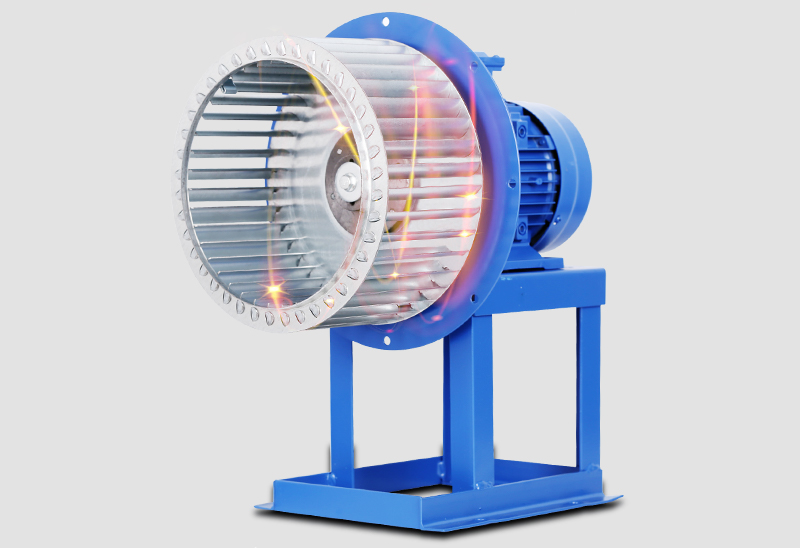

鍍鋅板多翼葉輪

不易生銹，耐磨抗氧化，使用壽命長，粉塵異味通通搞定

Not easy to rust, wear and oxidation resistance, long service life, light and beautiful

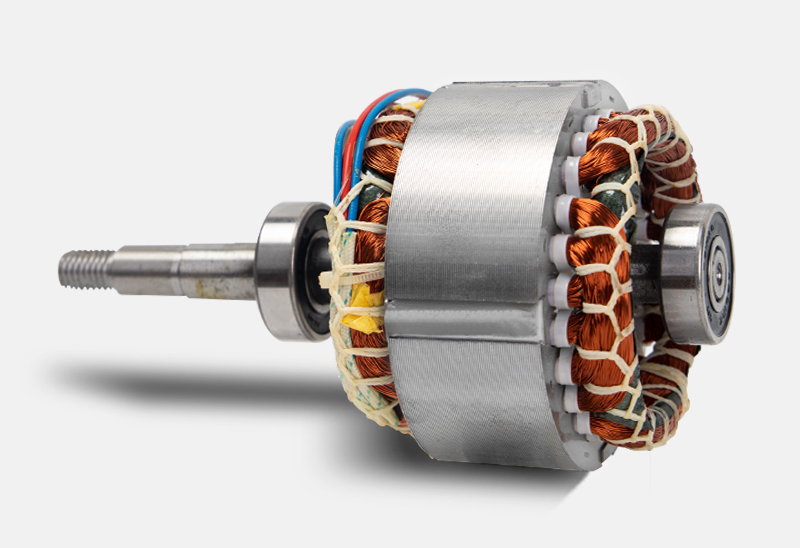

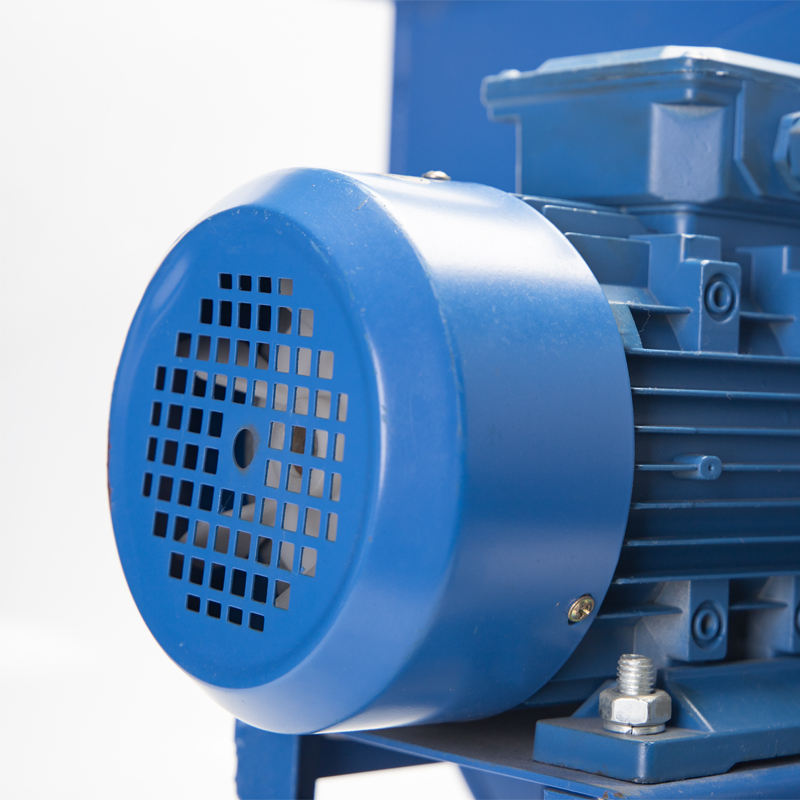

純銅電機

損耗低、效率高、噪音低? 真材實料看得見

Low loss, high efficiency, low vibration, real materials can be seen

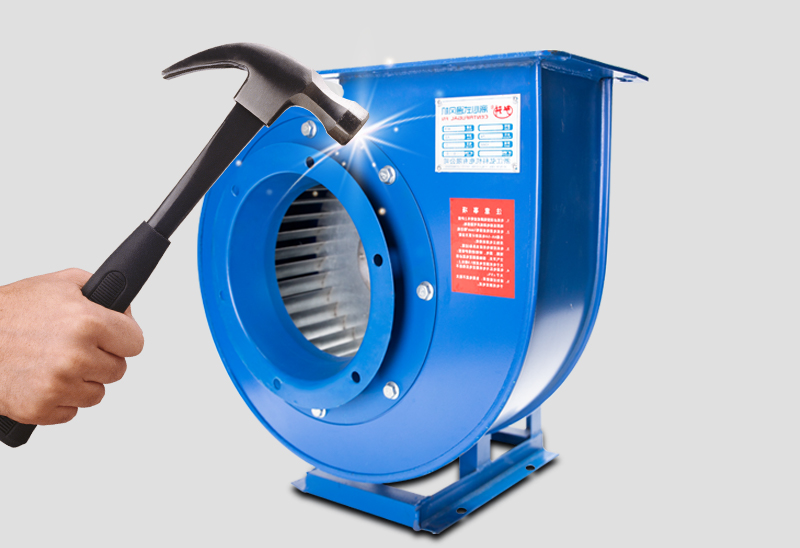

加厚碳鋼外殼

拒絕拉伸筒 隔熱耐高溫 耐磨不易變形

Refuse to stretch the tube, smooth and flat, wear-resistant and not easy to deform

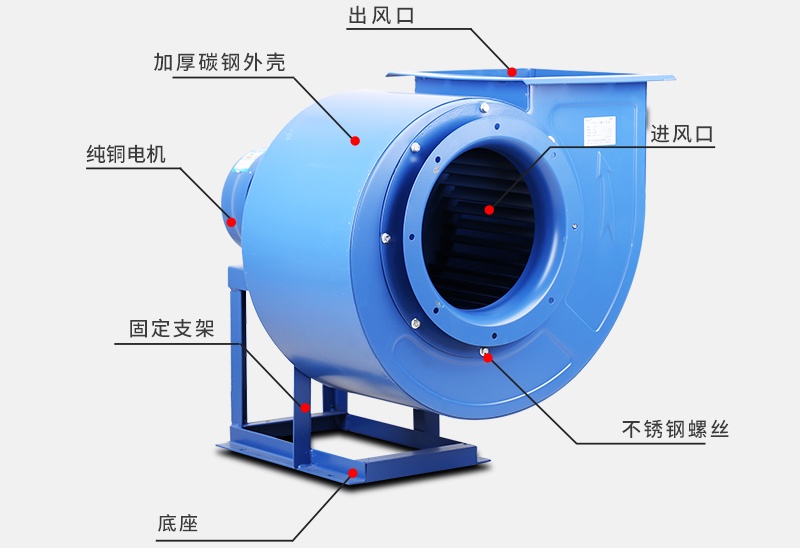

外觀解析

官方正品? 質量保障? 全面認知

Official genuine quality assurance comprehensive awareness

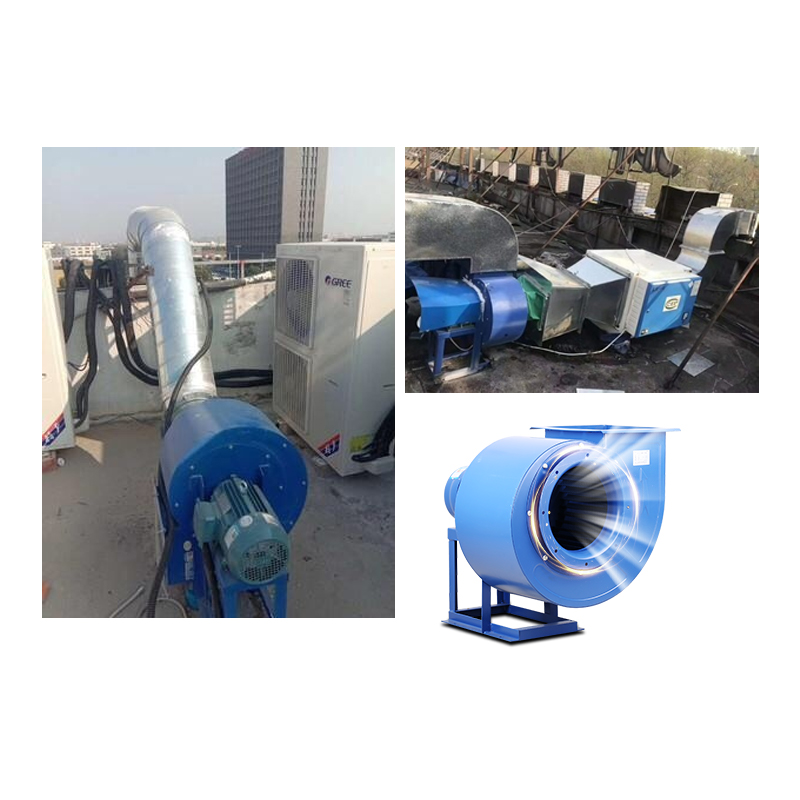

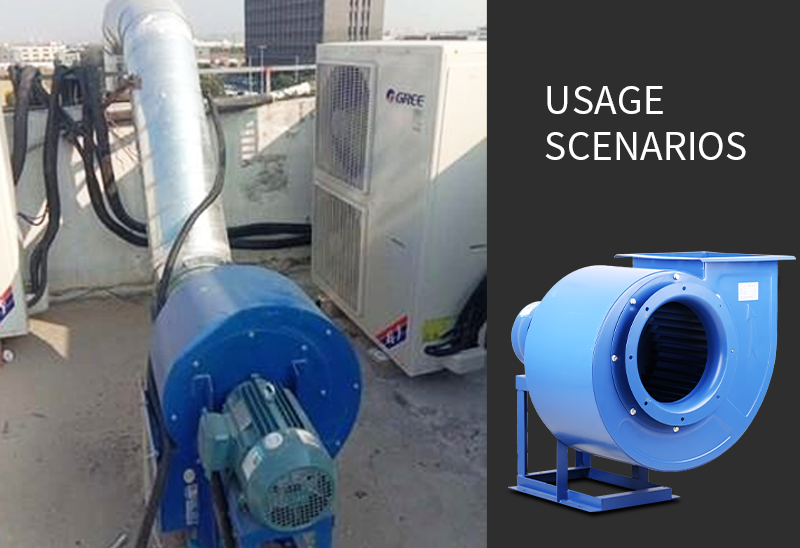

使用場景

11-62多翼式離心風機造型美觀，安裝便利

CF-11 special centrifugal fan for kitchen has beautiful appearance and easy installation

11-62 系列多翼式低噪聲離心通風機是廣泛應用于空調機組配套、廠礦企業及公共場所的通風換氣，既可用作輸入

新風，又可作氣體輸出。輸送的介質為空氣或其他不自然的對人體無害的氣體，介質中不含粘性物質，溫度≤80℃，

塵土及硬度顆粒物質不大于150mg/m3。

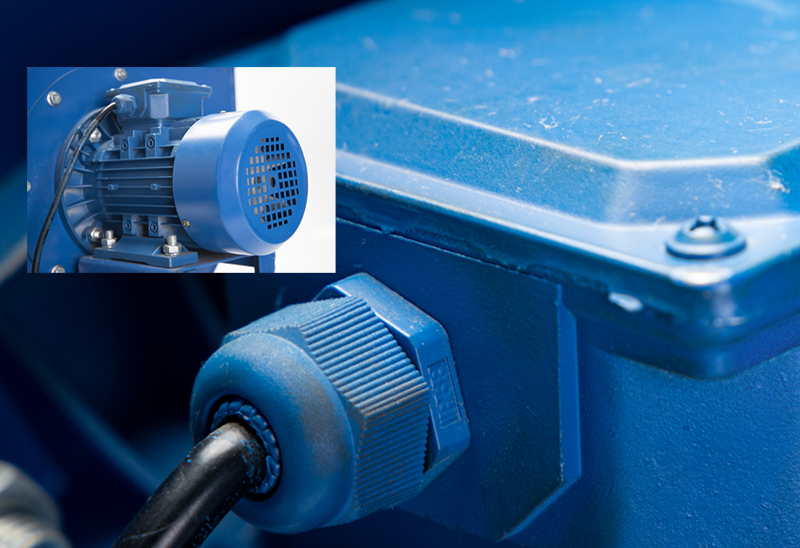

產品細節

純銅高轉速電機? 轉速高達2800次/分

Pure copper high-speed motor, speed up to 2800 times/min

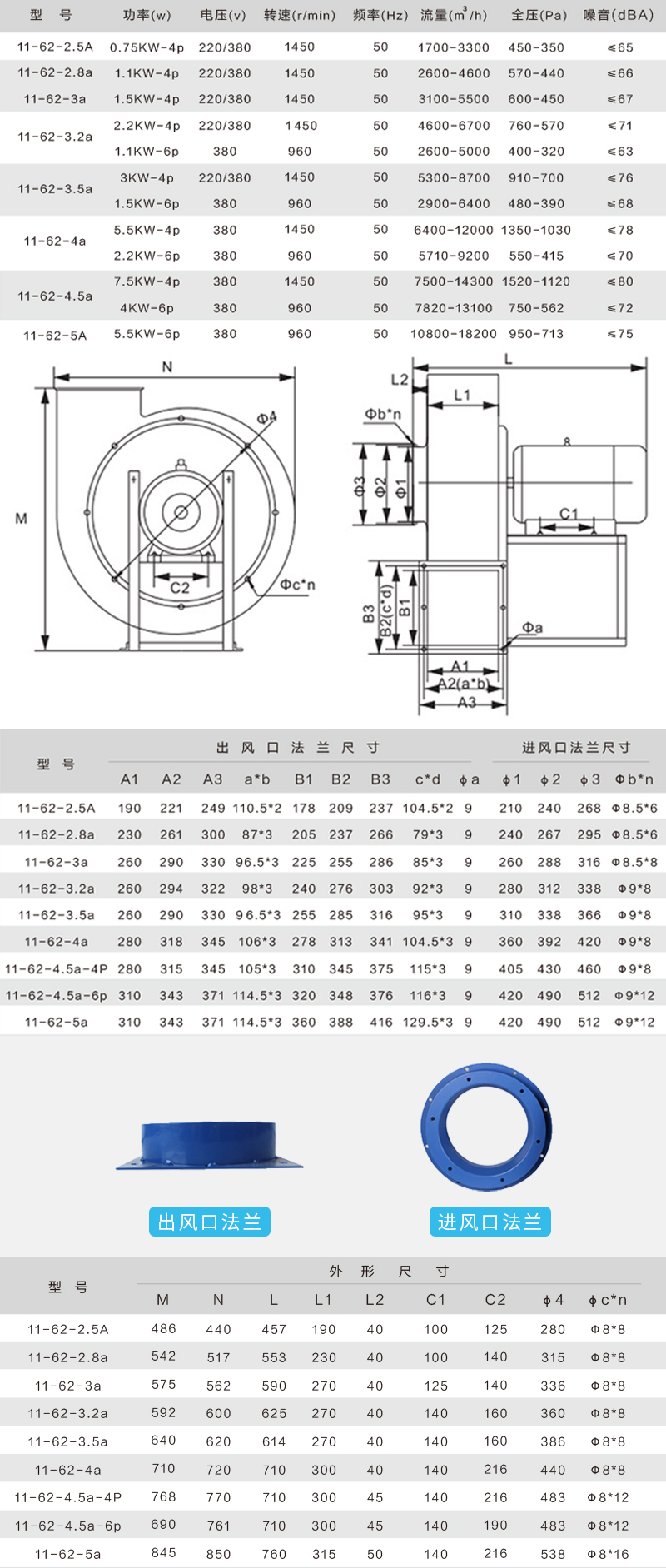

技術安裝參數

11-62多翼式離心風機 參數為人工測量，有1-2cm的誤差

11-62 Multi-blade centrifugal fan parameters are manually measured, with an error of 1-2cm

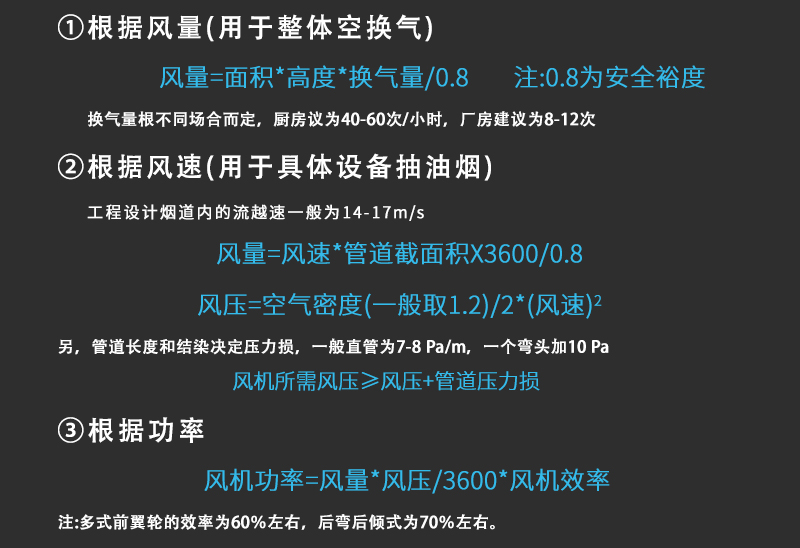

如何正確選擇風機型號

按照工程設計的需要的需風壓、風量、功率為準

According to the required wind pressure, air volume and power required by the engineering design

如有不清楚的地方親可以提供您所需要安裝場景和具體尺寸數據給我們的客服幫您做出專業的參考和建議

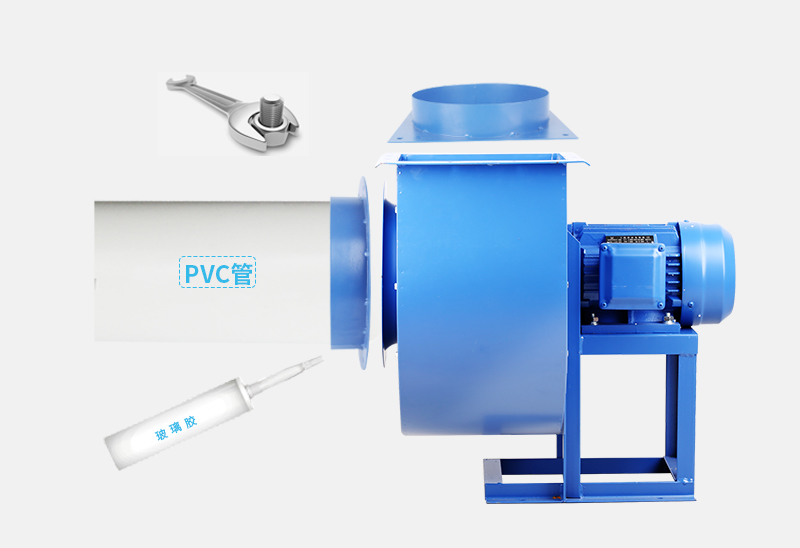

安裝方法

11-62多翼式離心風機安裝簡單，贈送自攻螺絲

11-62 Multi-wing centrifugal fan is easy to install, free self-tapping screws

1.自攻螺絲(贈送)? ? 2.接駁PVC管(自備)? ? 3.玻璃膠固定(自備)

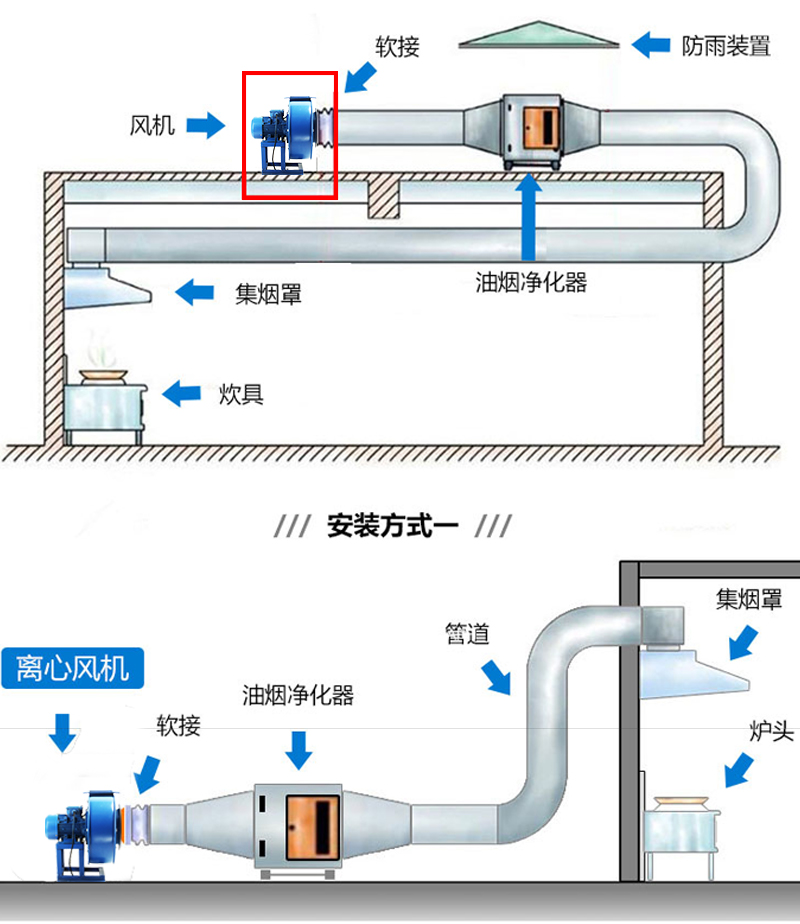

安裝示意圖

11-62多翼式離心風機 安裝簡單

11-62 Multi-blade centrifugal fan is easy to install

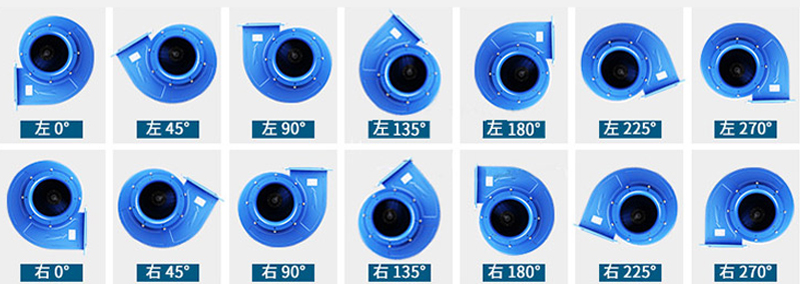

角度示意圖

出廠默認為左旋90度，如需其他角度可聯系客服定做

The factory default is 0 degree left-handed, if you need other angles, please contact customer service to customize

注：從電機端或傳動組端正視：逆時針?lè)较蛐D(zhuǎn)為左旋；順時針?lè)较蛐D(zhuǎn)為右旋。
