G型變頻電機散熱風機

外轉子電機? 碳鋼扇葉? 動平衡校準

The traditional color still make people happy, and simple tonal collocation, bold stripes can transform bring new look, let you become the new darling.

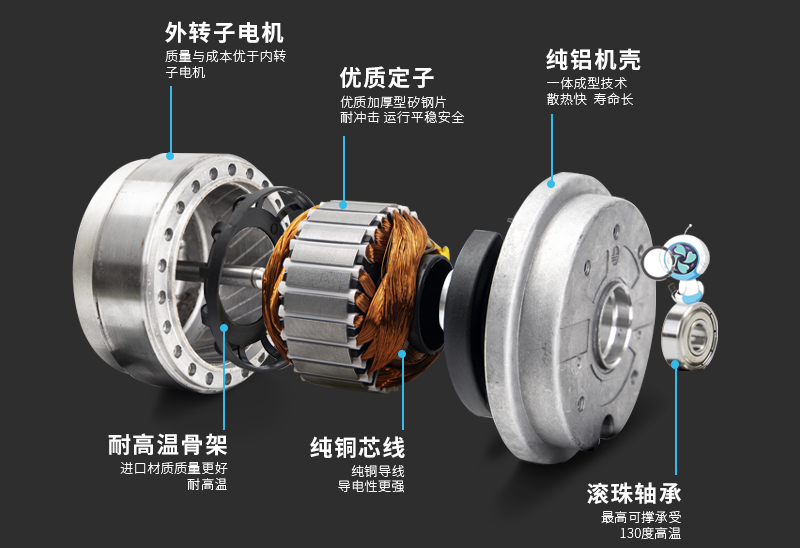

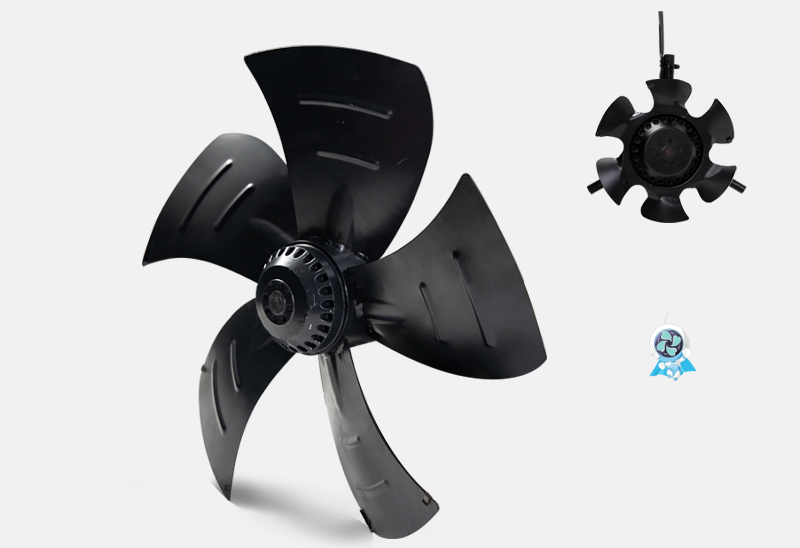

外轉子電機

損耗低、效率高、噪音低? 真材實料看得見

Low loss, high efficiency, low vibration, real materials can be seen

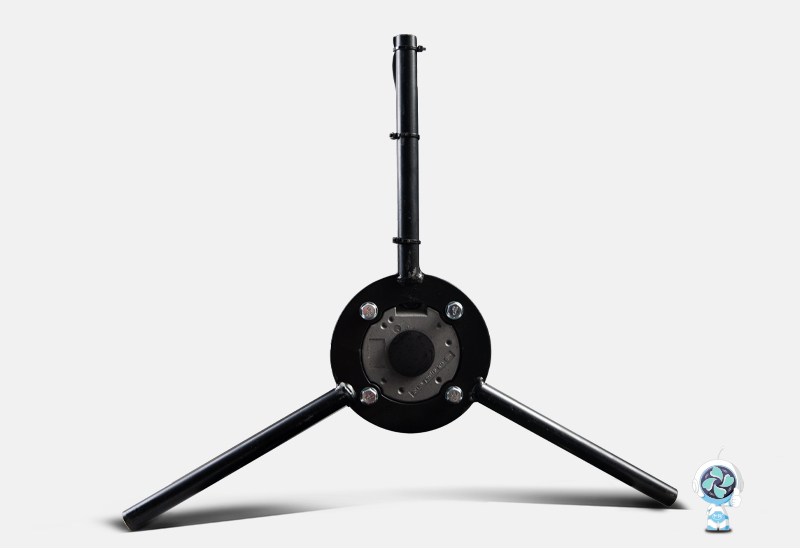

三角固定式抗震

黃金三角結構支架? 安裝穩固 不易掉落

Golden triangle structure support is stable and not easy to fall

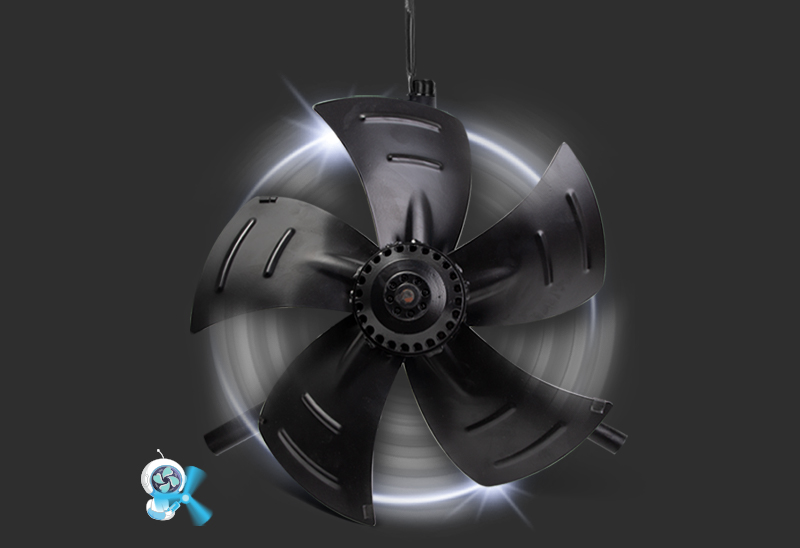

高轉速

高溫烤漆碳鋼扇葉? 轉速高達2800次/分鐘? 穩定運行? 低噪靜音

High-temperature paint carbon steel fan blades, speed up to 2800 times/min, stable operation

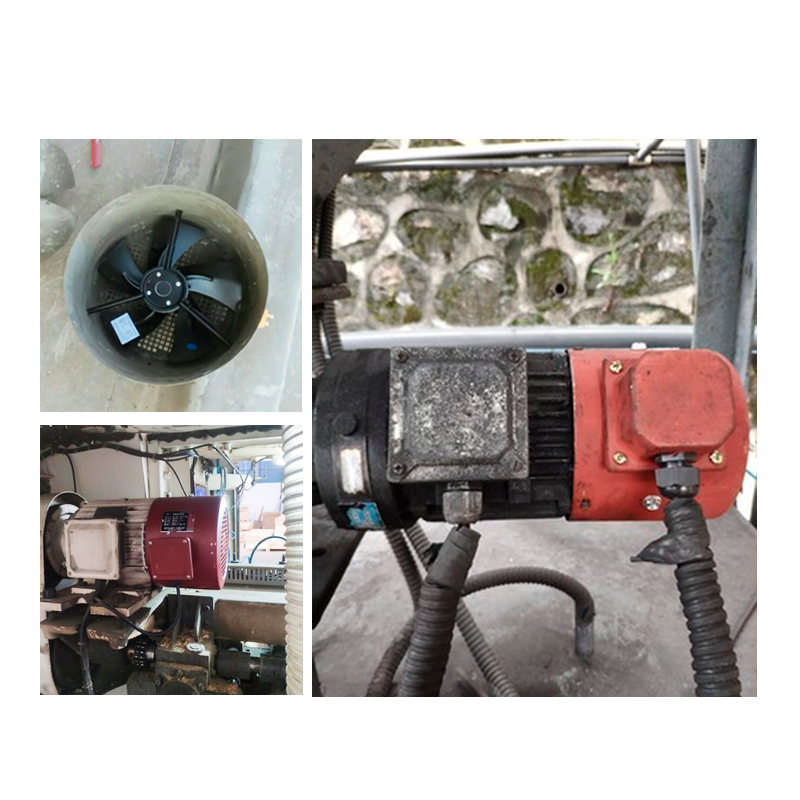

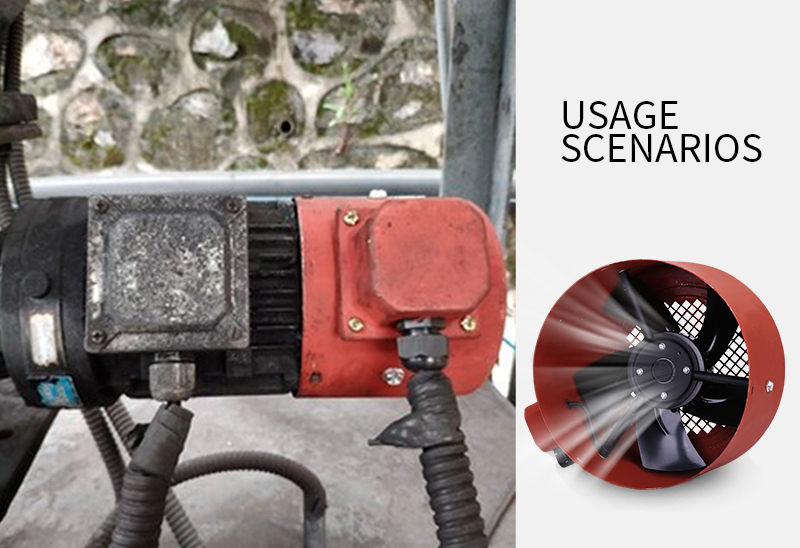

使用場景

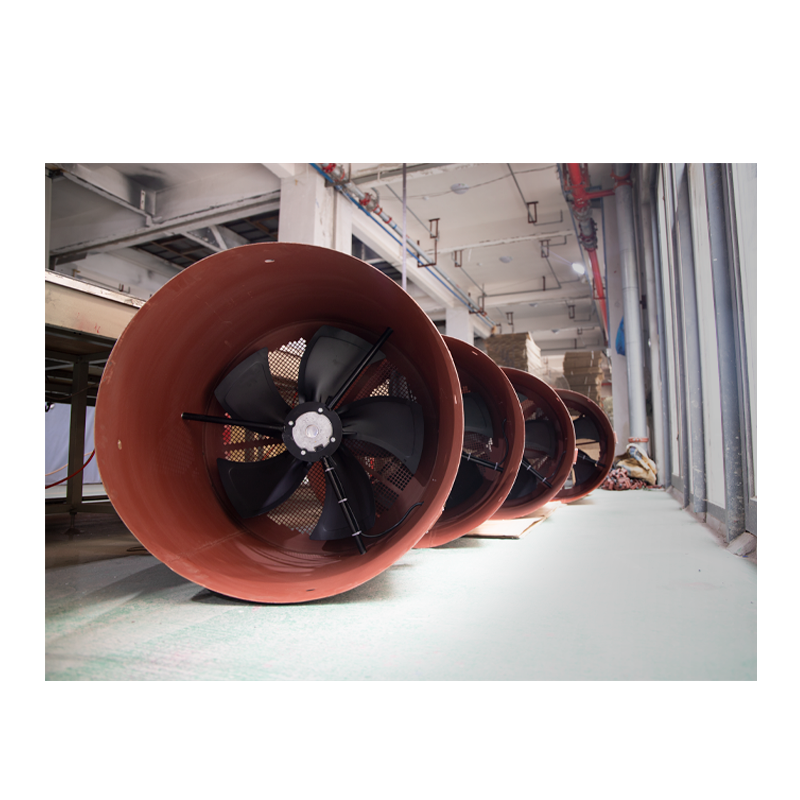

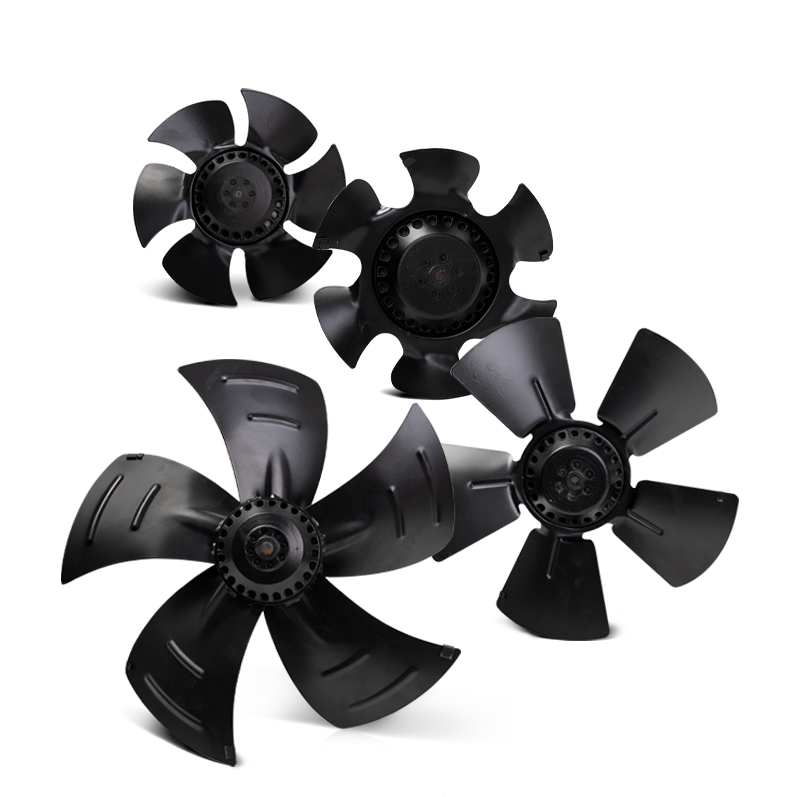

G型變頻散熱風機（不帶殼）造型美觀，適用于各種風機外殼

FBT35-11? anticorrosive explosion-proof axial flow fan has beautiful appearance and convenient installation

G系列變頻調速電機用軸流風機，由風罩、電動機、風葉三部分組成。外轉子結構電機其風葉緊固在電機外轉子上，具有結構緊湊、

噪聲低、風量大、安裝方便等優點。

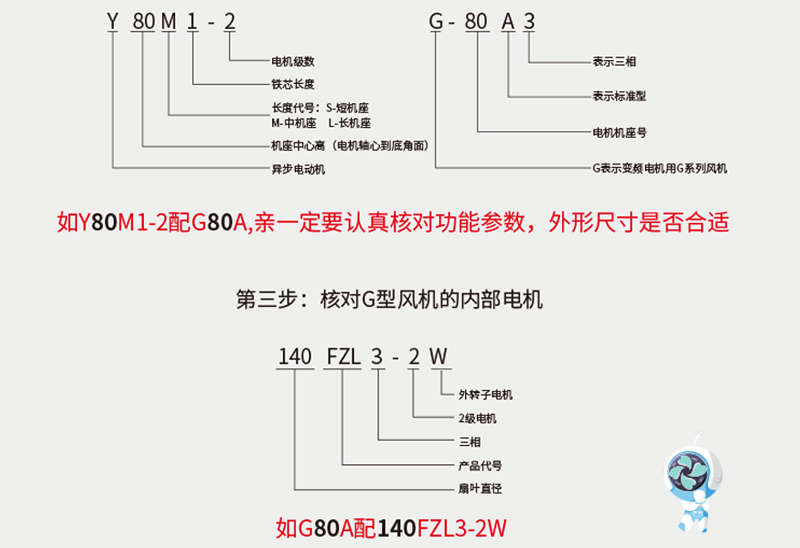

如何正確快速地選擇購買的型號

Suitable for printing machine, agricultural cultivation, plastic machinery,? plastic blowing, oven

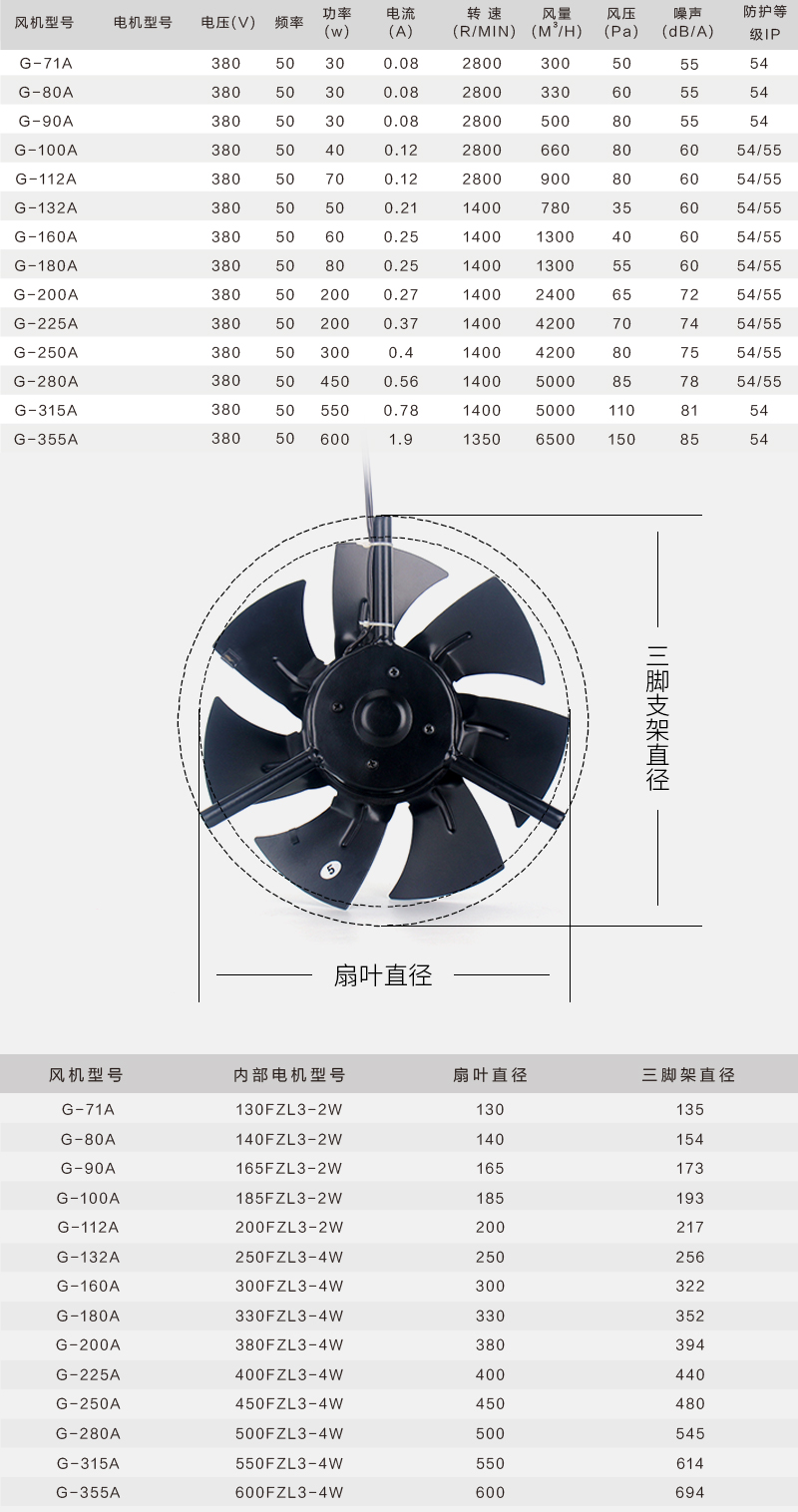

技術安裝參數

Axial fan for G series variable frequency speed motor is easy to install

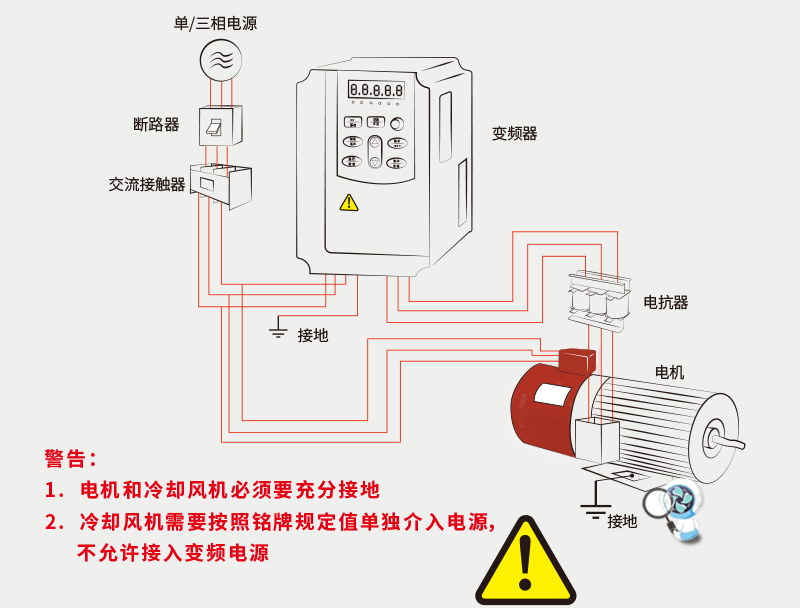

接線示意圖

電機和冷卻風機必須充分接地

The motor and cooling fan must be sufficiently grounded
